A penny saved is a penny earned

Commercial Vehicles Electrification Solutions

CORNEX provides customers in commercial applications with a full range of high-quality battery solutions, which can be widely used in logistics vehicles, heavy trucks, buses, sanitation vehicles, construction machinery, vessels and other fields, enabling the full electrification solutions for commercial applications.

High Security, High Convenience

No fire, no smoke
Based on GB38031 comprehensive test verification High-performance liquid cooling system with a temperature
difference of 3℃, bringing high heat tolerance

Long Service Life, Low Cost

Cycle life 4,000+

All-Weather Service, High Availability

Used in all weather, all working conditions,
and ultra-wide temperature

Market Applications

Logistics Vehicles Trucks Forklifts Buses Ships
Construction machinery Mini buses Minivans Mini-truck
Battery Cell Module & Pack
Battery Cell

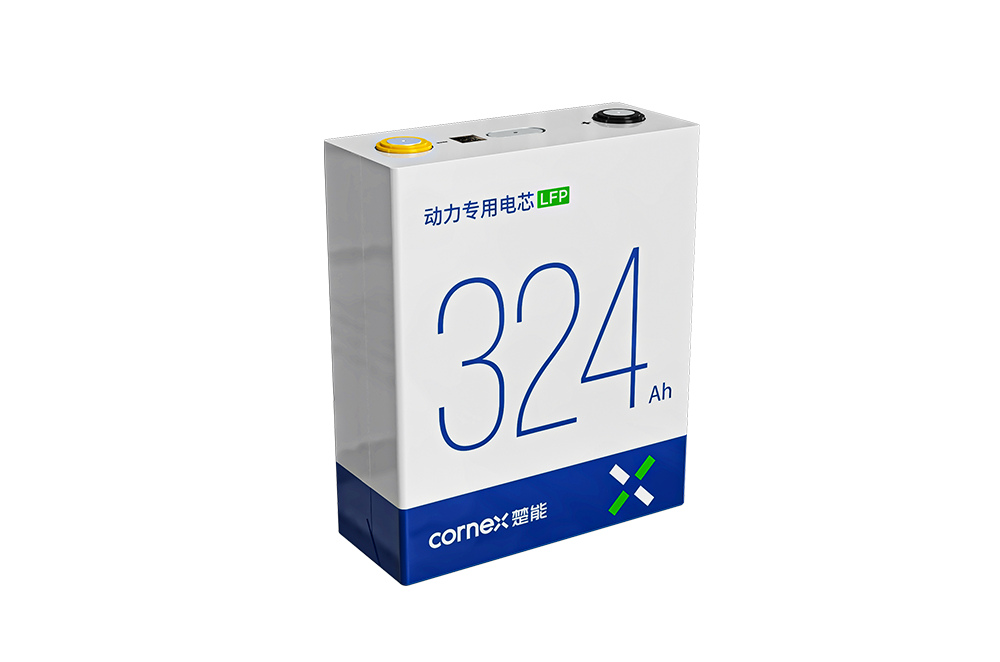

PF173-320A
PF173-230A
PF200-268A
PF200-200A
PF200-160A
PF200-150A
PF200-125A

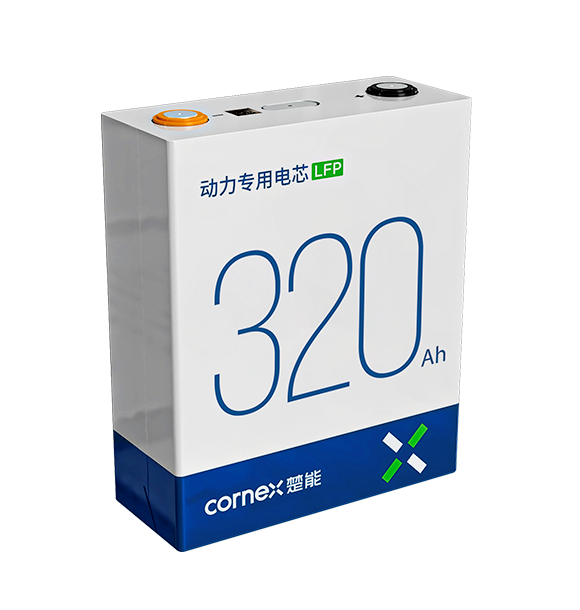

Basic parameters
Product SpecificationsPF173-320A
Rated Capacity (Ah)320Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥12000
Dimensions (W*L*H mm)71.5*174.4*207.2mm
Weight (kg)5.69kg
Testing and Certification CCS/GB38031/GBT31484/GBT31486
Basic parameters
Product SpecificationsPF173-230A
Rated Capacity (Ah)230Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)53.7*174.8*207.2mm
Weight (kg)4.22kg
Testing and Certification GB38031/GBT31484/GBT31486

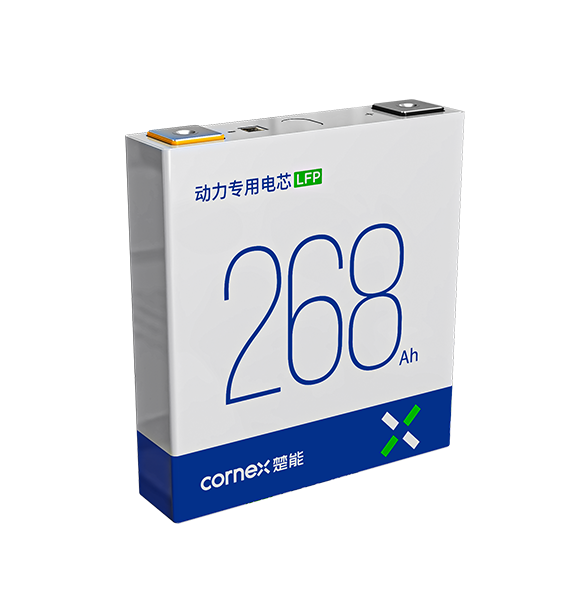

Basic parameters
Product SpecificationsPF200-268A
Rated Capacity (Ah)268Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)47.8*201.0*218.9mm
Weight (kg)4.9kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF200-200A
Rated Capacity (Ah)200Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)36.1*201.0*218.9mm
Weight (kg)3.7kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF200-160A
Rated Capacity (Ah)160Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)33.4*200.3*207.5mm
Weight (kg)3kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF200-150A
Rated Capacity (Ah)150Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)33.4*200.3*207.5mm
Weight (kg)3kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF200-125Ah
Rated Capacity (Ah)125Ah
Charge/Discharge Rate (C)1C/1C
Cycle Life≥6000
Dimensions (W*L*H mm)33.4*200.3*172.2mm
Weight (kg)2.49kg
Testing and Certification GB38031/GBT31484/GBT31486
Module & Pack
PF173-230A-P35L
PF173-230A-P28L
PF200-268A-P87L
PF200-125A-P41
PF200-150A-P40L
PF200-160A-P84L
Basic parameters
Product NameStandard C Type Battery Package
Product SpecificationsPF173-230A-P35L
Configuration 1P48S
Rated Capacity (Ah) 230Ah
Rated Energy (kWh)35.33kWh
Charge/Discharge Rate (C)1C/1C
CoolingLiquid Cooling
Dimensions (W*L*H mm)630*1060*240mm
Weight (kg)218kg
Basic parameters
Product NameStandard G Type Battery Package
Product SpecificationsPF173-230A-P28L
Configuration 1P39S
Rated Capacity (Ah) 230Ah
Rated Energy (kWh)28.7kWh
Charge/Discharge Rate (C)1C/1C
CoolingLiquid Cooling
Dimensions (W*L*H mm)630*950*240mm
Weight (kg)186kg
Basic parameters
Product NameStandard D05 Type Battery Package
Product SpecificationsPF200-268A-P87L
Configuration 1P102S
Rated Capacity (Ah) 268Ah
Rated Energy (kWh)87.48kWh
Charge/Discharge Rate (C)1C/1C
CoolingLiquid Cooling
Dimensions (W*L*H mm)2060*640*257mm
Weight (kg)588kg
Basic parameters
Product NameStandard M Type Battery Package
Product SpecificationsPF200-125A-P41
Configuration 1P104S
Rated Capacity (Ah) 125Ah
Rated Energy (kWh)41.6kWh
Charge/Discharge Rate (C)1C/1C
CoolingNatural Cooling
Dimensions (W*L*H mm)940*1138*209mm
Weight (kg)308kg
Basic parameters
Product NameStandard T Type Battery Package
Product SpecificationsPF200-150A-P40L
Configuration 1P84S
Rated Capacity (Ah) 150Ah
Rated Energy (kWh)40.32kWh
Charge/Discharge Rate (C)1C/1C
CoolingLiquid Cooling
Dimensions (W*L*H mm)520*1720*240mm
Weight (kg)284kg
Basic parameters
Product NameStandard T04 Type Battery Package
Product SpecificationsPF200-160A-P84L
Configuration 1P165S
Rated Capacity (Ah) 160Ah
Rated Energy (kWh)84.48kWh
Charge/Discharge Rate (C)1C/1C
CoolingLiquid Cooling
Dimensions (W*L*H mm)2300*760*240mm
Weight (kg)582kg
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
