Anywhere, anytime

Passenger Vehicles Electrification Solutions

CORNEX focuses on providing safe, reliable and cost-effective battery solutions for new energy passenger vehicles, with product series covering the entire range of models from MiniEV to C+ class, helping passenger vehicle companies to upgrade their electrification.

High Security, High Convenience

Cell material and structural safety optimization
No fire, no smoke
Based on GB38031 comprehensive test verification Anti-thermal runaway propagation system

Long Service Life, Low Cost

Warranty for 6 years or 600,000 km

Long Battery Life, High Availability

PED 190Wh/kg high-energy dense lithium iron technologies Endurance covering 400~600+km

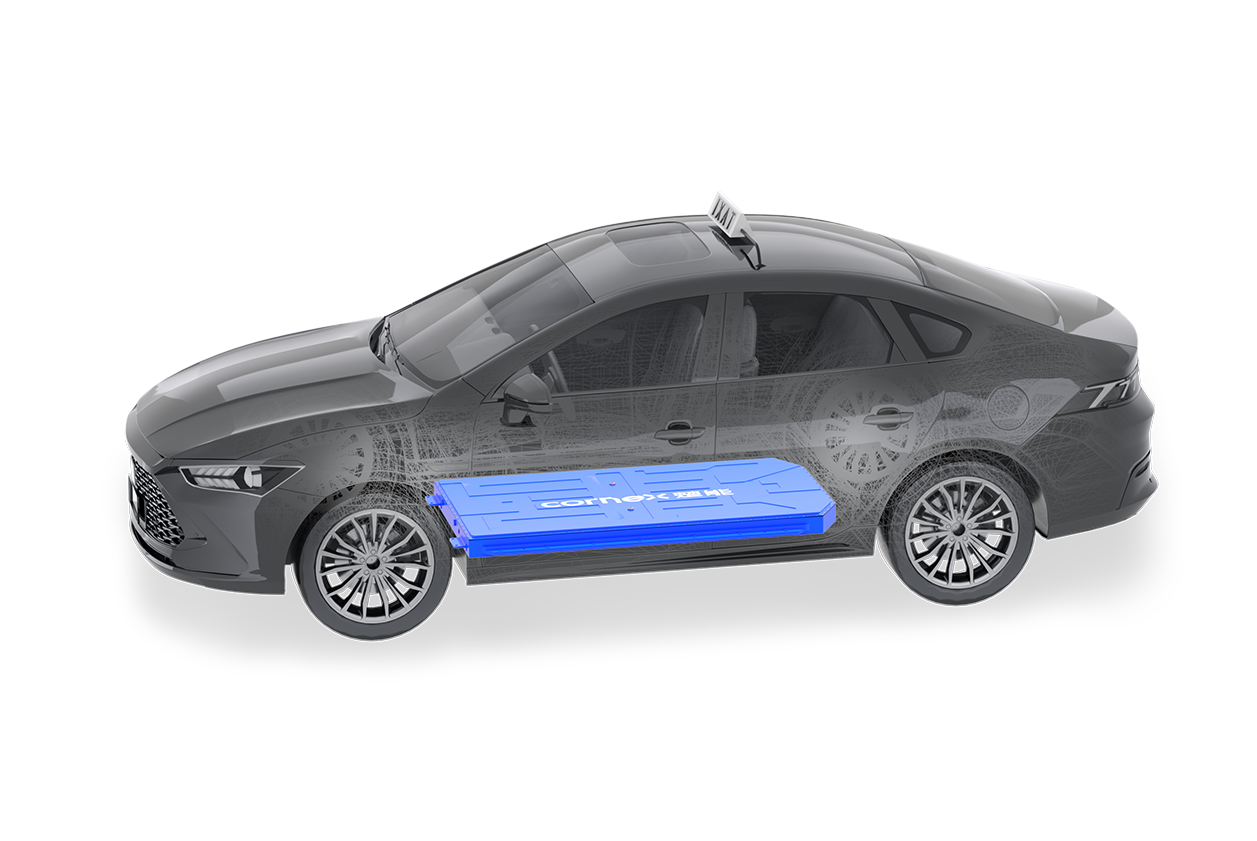

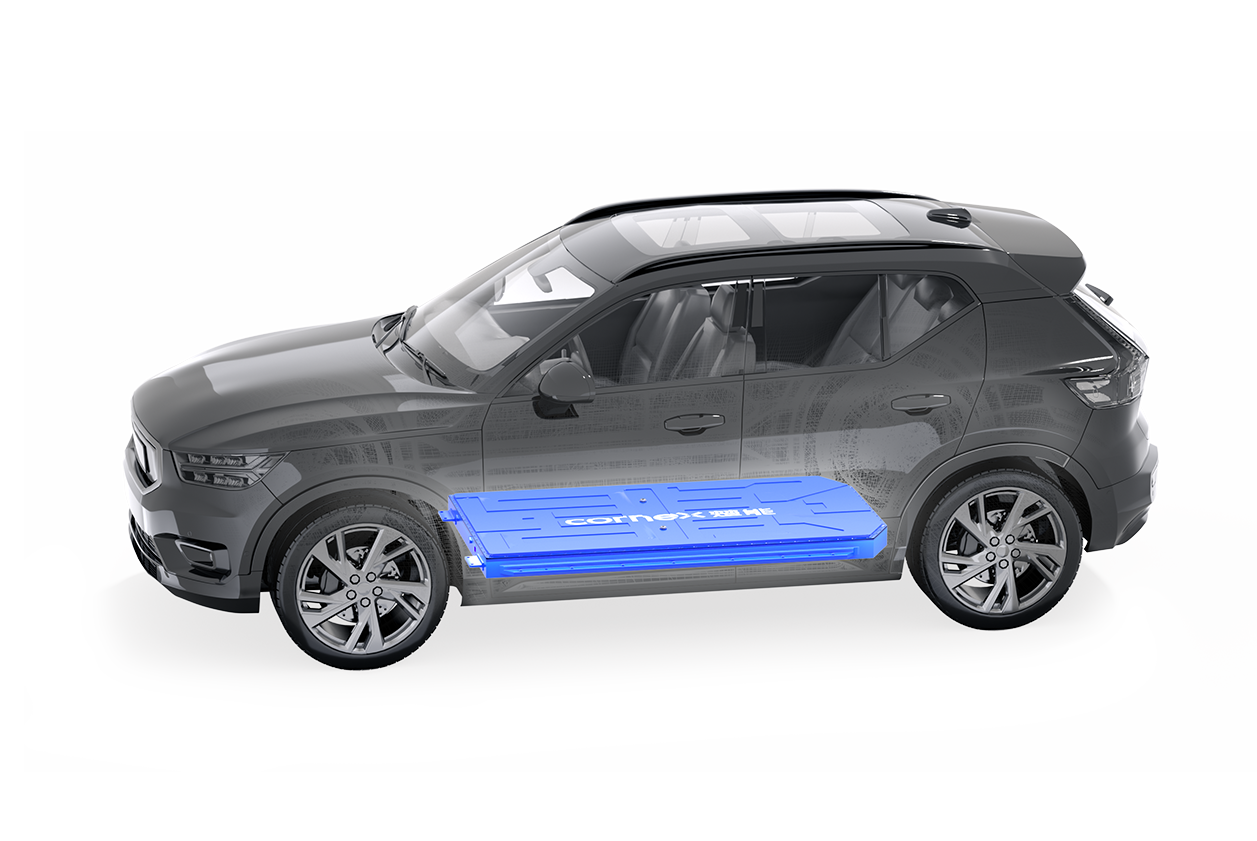

Market Applications

EV (to C) EV (to B) PHEV/HEV
Battery Cell
PF300-137A
PF300-134A
PF300-130A
PF300-166A
PF300-159A
PF300-207A
PF194-132A
PF194-130A
PF194-159A
RF39-20.5A
PF160-108A
PF148-89A
PF194-55A
RF50-50A
Basic parameters
Product SpecificationsPF300-137A
Rated Capacity (Ah)137Ah
Charge/Discharge Rate (C)1.6C/1.6C
Cycle Life≥2500
Dimensions (W*L*H mm)33.2*301*113.3mm
Weight (kg)2.49kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF300-134A
Rated Capacity (Ah)134Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)33.2*301*113.3mm
Weight (kg)2.5kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3

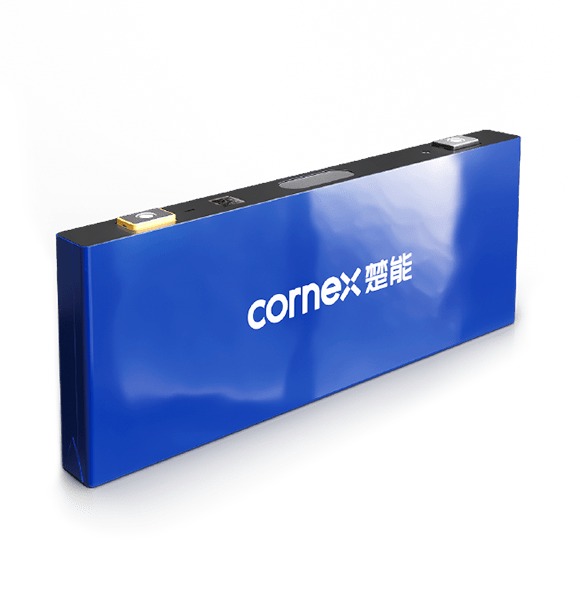

Basic parameters
Product SpecificationsPF300-130A
Rated Capacity (Ah)130Ah
Charge/Discharge Rate (C)4C/4C
Cycle Life≥2000
Dimensions (W*L*H mm)33.2*301*113.3mm
Weight (kg)2.5kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3

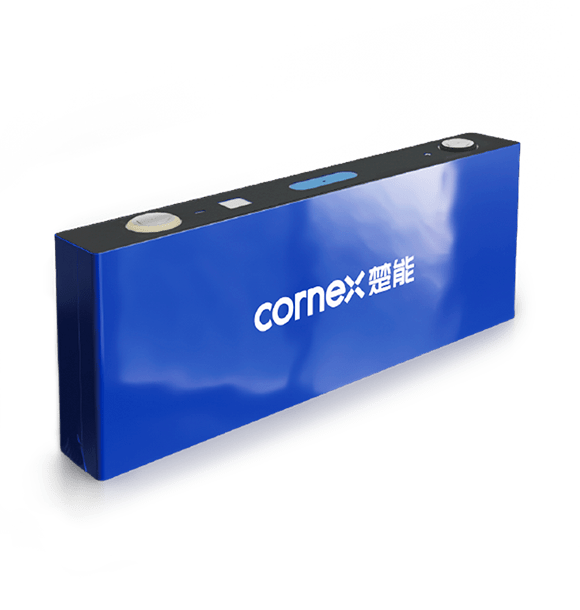

Basic parameters
Product SpecificationsPF300-166A
Rated Capacity (Ah)166Ah
Charge/Discharge Rate (C)1.6C/1.6C
Cycle Life≥2500
Dimensions (W*L*H mm)39.2*301*113.4mm
Weight (kg)2.96kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF300-159A
Rated Capacity (Ah)159Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)39.7*300.3*113.6mm
Weight (kg)2.98kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF300-207A
Rated Capacity (Ah)207Ah
Charge/Discharge Rate (C)2.2C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)50.8*300.3*113.8mm
Weight (kg)3.8kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters

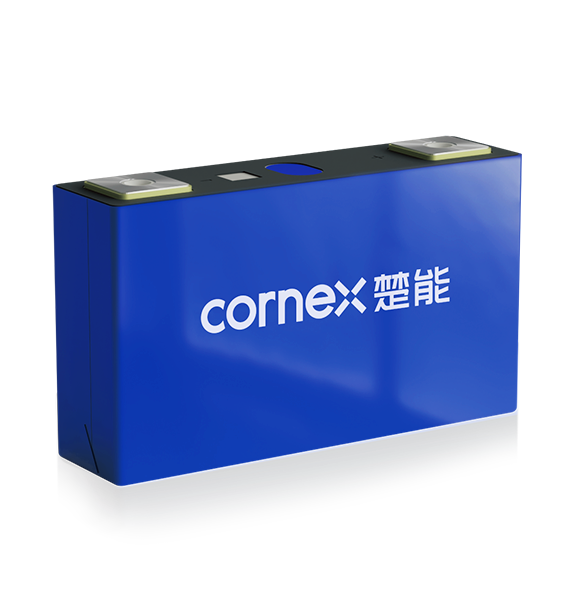

Product SpecificationsPF194-132A
Rated Capacity (Ah)132Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥2000
Dimensions (W*L*H mm)50.8*194.4*112.9mm
Weight (kg)2.45kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters

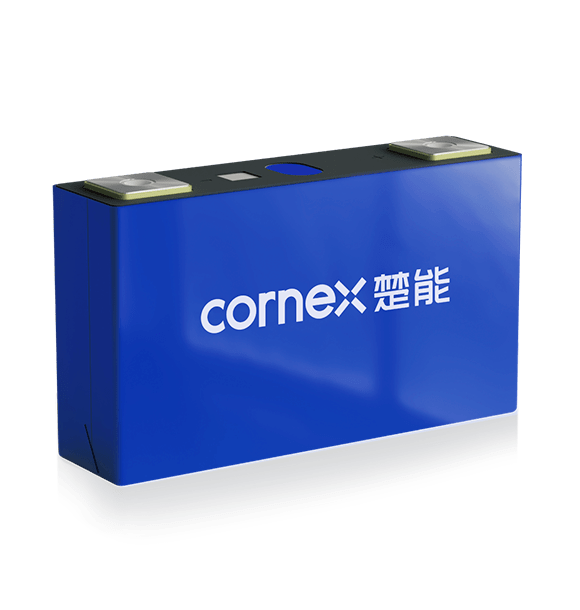

Product SpecificationsPF194-130A
Rated Capacity (Ah)130Ah
Charge/Discharge Rate (C)4C/4C
Cycle Life≥2000
Dimensions (W*L*H mm)50.8*194.4*113.1mm
Weight (kg)2.45kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3

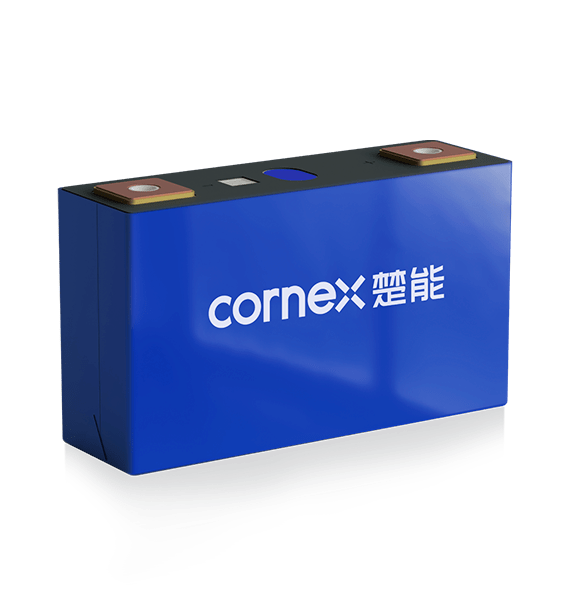

Basic parameters
Product SpecificationsPF194-159A
Rated Capacity (Ah)159Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥2000
Dimensions (W*L*H mm)60.8*194.4*112.9mm
Weight (kg)2.95kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsRF39-20.5A
Rated Capacity (Ah)20.5Ah
Charge/Discharge Rate (C)0.5C/1C
Cycle Life2000
Dimensions (D*H mm)Φ39*139mm
Weight (kg)0.37kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF160-108A
Rated Capacity (Ah)108Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥3000
Dimensions (W*L*H mm)50*160.7*113.4mm
Weight (kg)2kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters

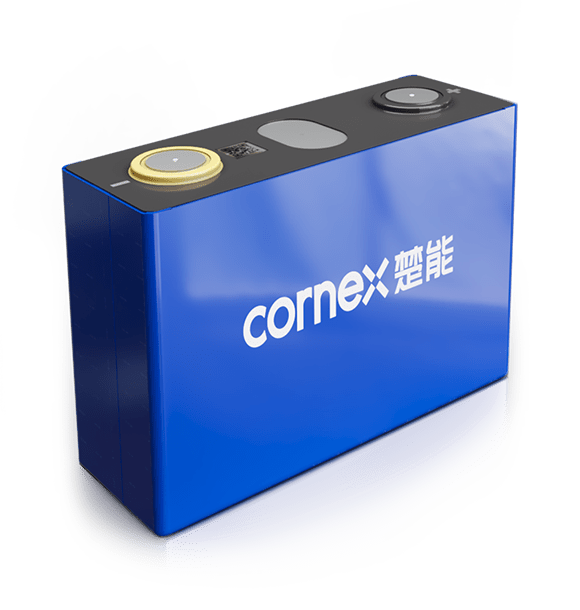

Product SpecificationsPF148-89A
Rated Capacity (Ah)89Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥3500
Dimensions (W*L*H mm)52*148*104mm
Weight (kg)1.7kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsPF194-55A
Rated Capacity (Ah)55Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥3500
Dimensions (W*L*H mm)29.2*194.8*88.7mm
Weight (kg)1.1kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
Basic parameters
Product SpecificationsRF50-50A
Rated Capacity (Ah)50Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥3000
Dimensions (D*H mm)Φ50*205mm
Weight (kg)0.9kg
Testing and Certification GB38031/GBT31484/GBT31486/UN38.3
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
