Sustainable development, better future

Energy Storage Solutions

CORNEX is committed to providing customers with professional energy storage battery solutions from safety, energy efficiency, economic efficiency, installation and maintenance convenience and other multi-dimensional factors, so as to facilitate the integration of “power sources, grid, load and storage”.

Safety

Compliant with GB, UL, CB global access certification
Thinner cell solution, which can fundamentally solve the heat problem at its source

Long Cycle Life

Cycle life 10,000 +

Easy Installation

Platform and modular design Plug-and-play for easier maintenance

Market Applications

Commercial and Industrial ESS Home ESS Telecom ESS Grid ESS Outdoor ESS
Battery Cell
PF173-280A
PF173-314A
PF173-150B
PF160-100A
PF160-150A
Basic parameters
Product SpecificationsPF173-280A
Rated Capacity (Ah)280Ah
Charge/Discharge Rate (P) 0.5P
Energy Efficiency (0.5P)95%
Cycle Life10000
Dimensions (W*L*H mm)71.5*174.4*207.2mm
Weight (kg)5.49kg
Application FieldsGrid ESS/Commercial and Industrial ESS/E-Vessel
Testing and Certification GB/CCS/UN38.3/UL/IEC
Basic parameters
Product SpecificationsPF173-314A
Rated Capacity (Ah)314Ah
Charge/Discharge Rate (P) 0.5P
Energy Efficiency (0.5P)95%
Cycle Life12000
Dimensions (W*L*H mm)71.7*174.4*207.2mm
Weight (kg)5.69kg
Application FieldsGrid ESS/Commercial and Industrial ESS
Testing and Certification GB/UN38.3/UL/IEC
Basic parameters
Product SpecificationsPF173-150B
Rated Capacity (Ah)150Ah
Charge/Discharge Rate (P) 1P
Energy Efficiency (1P)93%
Cycle Life7000
Dimensions (W*L*H mm)44.7*174.4*189.6mm
Weight (kg)3.1kg
Application FieldsGrid ESS/Commercial and Industrial ESS
Testing and Certification GB/UN38.3/UL/IEC
Basic parameters

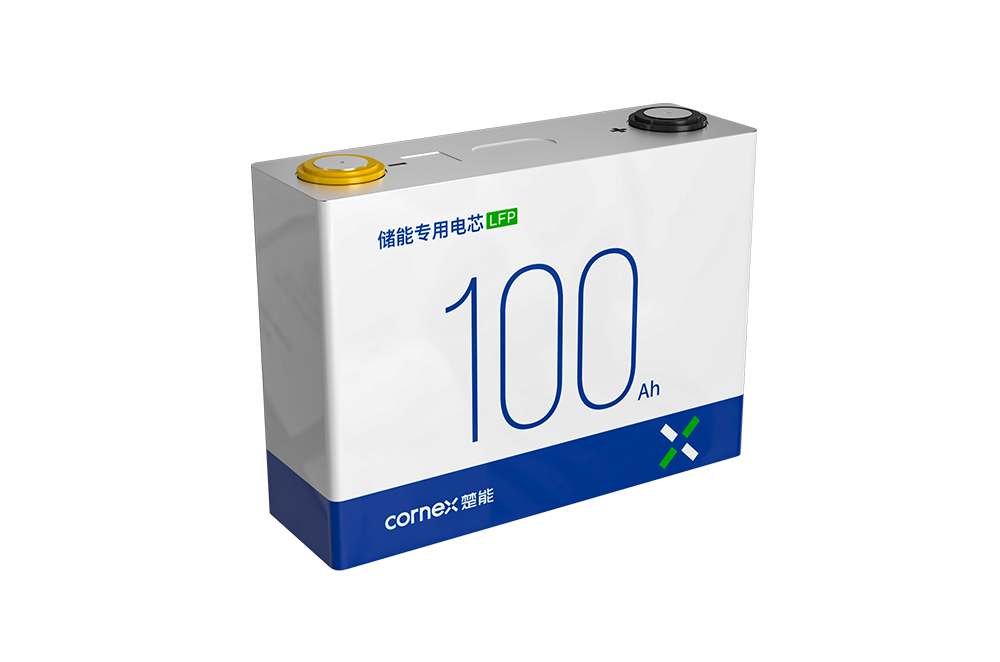

Product SpecificationsPF160-100A
Rated Capacity (Ah)100Ah
Charge/Discharge Rate (C)1C
Energy Efficiency (1C)93%
Cycle Life6000
Dimensions (W*L*H mm)50*160.3*118.5mm
Weight (kg)2kg
Application FieldsTelecom ESS/Home ESS
Testing and Certification GB/UN38.3/UL/IEC
Basic parameters
Product SpecificationsPF160-150A
Rated Capacity (Ah)150Ah
Charge/Discharge Rate (C)1C
Energy Efficiency (1C)93%
Cycle Life6000
Dimensions (W*L*H mm)50*160.3*167.5mm
Weight (kg)2.85kg
Application FieldsTelecom ESS/Home ESS
Testing and Certification GB/UN38.3/UL/IEC
Grid ESS
PF173-280A-P46L
PF173-314A-P104L
PF173-280A-C3354L
PF173-314A-C5015L
Basic parameters
Product NameLiquid Cooling Battery Module
Product SpecificationsPF173-280A-P46L
Grouping Method1P52S
Nominal Capacity (Ah)280Ah
Nominal Energy (kWh)46.592kWh
Charge/Discharge Rate (P) 0.5P
Energy Efficiency≥94%
Cooling MethodLiquid-cooled
Dimensions (W*L*H mm)811*1150*240mm
Weight (kg)335kg
Technical Features"Submerge" Firefighting/Active Firefighting
Basic parameters

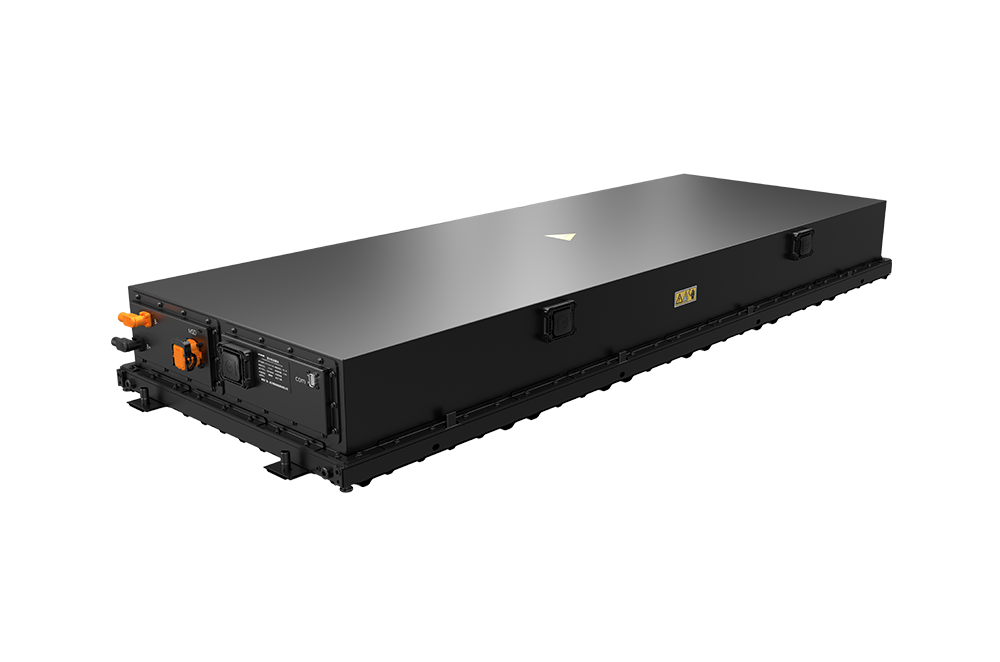

Product NameLiquid Cooling Battery Module
Product SpecificationsPF173-314A-P104L
Grouping Method1P104S
Nominal Capacity (Ah)314Ah
Nominal Energy (kWh)104.49kWh
Charge/Discharge Rate (P) 0.5P
Energy Efficiency≥94%
Cooling MethodLiquid-cooled
Dimensions (W*L*H mm)790*2230*240mm
Weight (kg)690kg
Technical Features"Submerge" Firefighting/Active Firefighting
Basic parameters
Product NameLiquid Cooling Battery Energy Storage Container
Product SpecificationsPF173-280A-C3354L
Cell Capacity (Ah)280Ah
Configuration9*1P416S
Nominal Energy (kWh)3354kWh
Rated Power (kW)1677kW
Range of Working Voltage (V)1040~1500V
Range of Working Temperature(℃)-20~55℃
Thermal ManagementLiquid Cooling + Liquid Warming
Firefighting System “Submerge” Battery Safety
System+Perfluorohexanone/Heptafluoropropane
(Optional)
System CommunicationModbus-RTU/TCP
IP ProtectionIP55
Dimensions (L*W*H mm)6058*2438*2896mm(20ft)
Weight (T)32T
Basic parameters

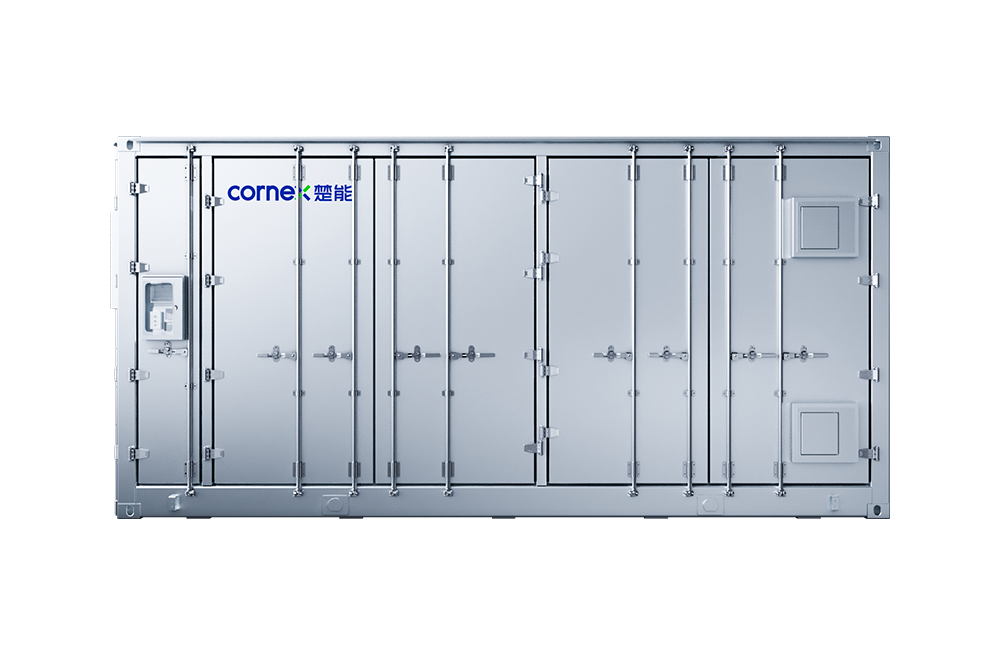

Product NameLiquid Cooling Battery Energy Storage Container
Product SpecificationsPF173-314A-C5015L
Cell Capacity (Ah)314Ah
Configuration12*1P416S
Nominal Energy (kWh)5015kWh
Rated Power (kW)2500kW
Range of Working Voltage (V)1040~1500V
Range of Working Temperature(℃)-30~55℃
Thermal ManagementLiquid Cooling + Liquid Warming
Firefighting System “Submerge” Battery Safety
System+Perfluorohexanone/Heptafluoropropane
Aerosol (Optional)
System CommunicationModbus-RTU/TCP
IP ProtectionIP55
Dimensions (L*W*H mm)6058*2438*2896mm(20ft)
Weight (T)42.5T
Commercial and Industrial ESS
Basic parameters
Product NameLiquid Cooling Battery Module
Product SpecificationsPF173-280A-P46L
Grouping Method1P52S
Nominal Capacity (Ah)280Ah
Nominal Energy (kWh)46.592kWh
Charge/Discharge Rate (P) 0.5P
Energy Efficiency≥94%
Cooling MethodLiquid-cooled
Dimensions (W*L*H mm)811*1150*240mm
Weight (kg)335kg
Technical Features"Submerge" Firefighting/Active Firefighting
Basic parameters
Product Name233kWh Liquid Cooling Outdoor Cabinets
Product SpecificationsOTS02-H233L
Cell Capacity (Ah)280Ah
Configuration1P260S
Nominal Energy (kWh)233kWh
Rated Power (kW)110kW
Range of Working Voltage (V)650V~949V@DC
Range of Working Temperature(℃)-20~55℃
Thermal ManagementLiquid Cooling + Liquid Warming
Firefighting System Pack Level Aerosol + Cabin Level Aerosol + Active Monitor
System CommunicationModbus-RTU/TCP
IP ProtectionIP55
Dimensions (W*L*H mm)1035*1300*2305mm
Weight (kg)2600kg
Basic parameters
Product Name261kWh Liquid Cooling Outdoor Cabinets
Product SpecificationsOTS03-H261L
Cell Capacity (Ah)314Ah
Configuration1P260S
Nominal Energy (kWh)261kWh
Rated Power (kW)130kW
Range of Working Voltage (V)650V~949V@DC
Range of Working Temperature(℃)-20~55℃
Thermal ManagementLiquid Cooling + Liquid Warming
Firefighting System Pack Level Aerosol + Cabin Level Aerosol + Active Monitor
System CommunicationModbus-RTU/TCP
IP ProtectionIP55
Dimensions (W*L*H mm)1035*1300*2305mm
Weight (kg)2650kg
PF173-280A-P46L OTS02-H233L OTS03-H261L
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
