Anywhere, anytime

Passenger Vehicles Electrification Solutions

CORNEX focuses on providing safe, reliable and cost-effective battery solutions for new energy passenger vehicles, with product series covering the entire range of models from MiniEV to C+ class, helping passenger vehicle companies to upgrade their electrification.

High Security, High Convenience

Cell material and structural safety optimization
No fire, no smoke
Based on GB38031 comprehensive test verification Anti-thermal runaway propagation system

Long Service Life, Low Cost

Warranty for 6 years or 600,000 km

Long Battery Life, High Availability

PED 190Wh/kg high-energy dense lithium iron technologies Endurance covering 200~1000+km

Market Applications

EV (to C) EV (to B) PHEV/HEV
Battery Cell
PF210-145A
PF300-173A
PF300-166A
Basic parameters

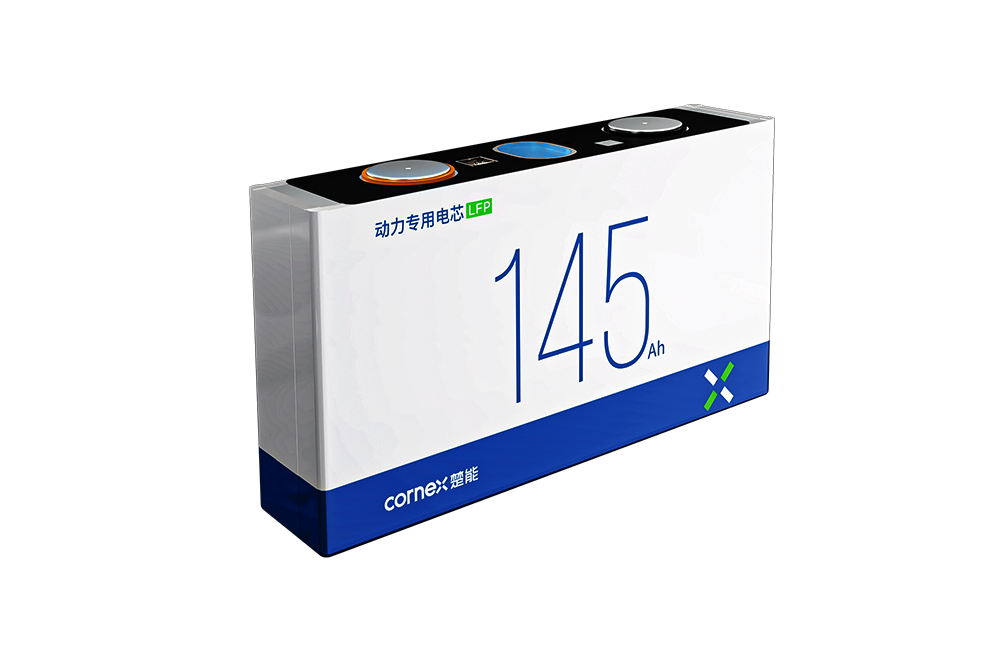

Product SpecificationsPF210-145A
Rated Capacity (Ah) @1/3C145Ah
Continuous charge rate (C-rate)6C
Pulse discharge rate (C-rate)8C
Cycle Life≥2000
Dimensions (W*L*H mm)46*210*116.7mm
Energy density (Wh/kg)185Wh/kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS
Basic parameters
Product SpecificationsPF300-173A
Rated Capacity (Ah) @1/3C173Ah
Continuous charge rate (C-rate)3C
Pulse discharge rate (C-rate)8C
Cycle Life≥2500
Dimensions (W*L*H mm)40.4*300*115.2mm
Energy density (Wh/kg)185Wh/kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS
Basic parameters

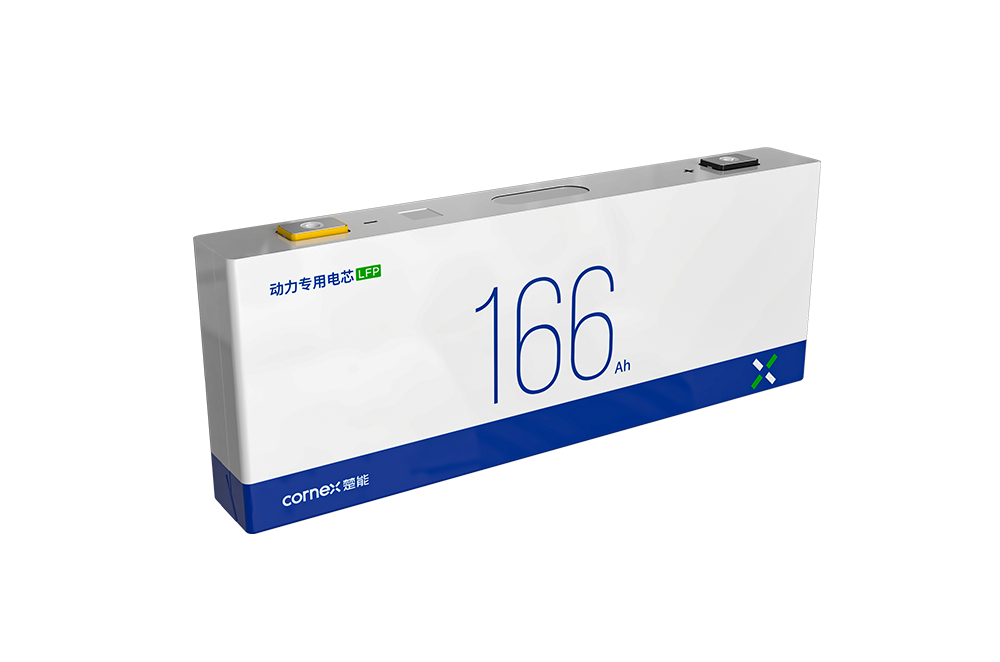

Product SpecificationsPF300-166A
Rated Capacity (Ah) @1/3C166Ah
Continuous charge rate (C-rate)1.8C
Pulse discharge rate (C-rate)4C
Cycle Life≥2500
Dimensions (W*L*H mm)39.2*301*113.4mm
Energy density (Wh/kg)185Wh/kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS

CTP 3.0 Super-fast Charge Power Battery System

The CTP 3.0 super-fast charge power battery system developed by CORNEX is provided with a 6C+800V super-power system through the matrix arrangement of high-performance power cells. The battery can be charged to 10%-80% power within 8 min.
The original single-large-area liquid cooling system, combined with wide, thin and high-performance power battery cells, can avoid low volume utilization rate of double-large-area cooling system and low efficiency of bottom cooling system. The related performance indicators are superior to the industrial criterion.

Ultra-high thermal conversion efficiency

Heat transfer efficiency increased by 20%
Temperature fluctuation controlled within 4°C
Stable operation in the range of -40°C to 60°C

Satisfactory temperature control/excellent safety performance

High-temperature-resistant and flame-retardant material
Large surface of the cell close to the liquid-cooled plate
No thermal diffusion under conditions such as puncturing, heating and overcharge

Super-fast charge

Maximum continuous charge rate: 6 C
Charging speed 1.25km/s

High volume utilization rate

Wire harness and aluminum busbar reduced by more than 30%
Volume utilization rate of more than 80%
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
